How to run a Docker Container on the vCenter Server Appliance (VCSA) 6.5?

10.24.2016 by William Lam // 8 Comments

One of the most notable changes in the vCenter Server Appliance (VCSA) in vSphere 6.5 is a switch of the underlying OS from SLES to VMware's very own Photon OS. With this change, VMware will now own the entire software stack within the VCSA (OS + Application). This will allow VMware to quickly respond and deliver OS and security updates to customers at a much quicker rate than it was possible before.

During my testing of the VCSA, I had a need to spin up a Docker Container. Given that the VCSA is now Photon OS based, this should be a pretty trivial thing to enable as it is with a standalone installation of Photon OS. After a bit of trial/error, I found what was needed to get this working on the VCSA. Before jumping into the solution, I should say that this is really for lab and educational purposes. In general, I would NOT recommend installing additional software on the VCSA, not only is this NOT supported by VMware but you may also potentially be impacting your vCenter Server by taking resources away from the main application. It is possible to constrain the amount of resources (CPU/Memory) allocated to the Docker Container, please refer to this resource for more information.

For smaller customers, the argument is that I can just run everything on a single system but in reality there are many benefits to having a separate management VM which can be Photon OS or any other OS that your organization supports. You can install additional management tools/scripts and you would not be artificially limited by the VCSA's environment which is really locked down to what is absolutely needed to run the vCenter Server application and its services.

Disclaimer: This is not officially supported by VMware, please use at your own risk.

Given that PowerCLI Core (Linux and Mac OS X) was just recently released, which also includes a Docker Container, I figure this would be a nice example to start with as I know a few of you have asked about this possibility 🙂

Step 1 - Install Docker by running the following command (you will need access to the internet either direct or proxy access from the VCSA)

tdnf -y install docker

Step 2 - Load the following kernel module which will allow us to start the Docker client by running the following command:

insmod /usr/lib/modules/$(uname -r)/kernel/net/bridge/bridge.ko

Note: The above command does not persist across reboots. If you would like to persist this configuration, please refer to the instructions at the very bottom.

Step 3 - Enable and start the Docker Client by running the following command:

systemctl enable docker
systemctl start docker

Step 4 - Pull down the PowerCLI Core Docker Image from Docker Hub by running the following command:

docker pull vmware/powerclicore

docker-container-on-vcsa-6-5-3
Step 5 - Start the PowerCLI Core Docker Container by running the following command:

docker run --rm -it --entrypoint='/usr/bin/powershell' vmware/powerclicore

docker-container-on-vcsa-6-5-4
As you can see from the screenshot above, you now have PowerShell and the PowerCLI module loaded running as a Docker Container on the VCSA 🙂 You can apply this to any Docker Container that you have created or pulling it directly from Docker Hub. If you prefer to build the PowerCLI Core Docker Container from the Dockerfile, you simply just need to download and extract the PowerCLI Core zip file onto the VCSA and then run the following command:

docker build -t vmware/powercli .

docker-container-on-vcsa-6-5-0

How to persist bridge module load across reboots:

Step 1 - Edit /etc/modprobe.d/modprobe.conf and remove the "install bridge /bin/false" entry.

Step 2 - Create a new file called /etc/modules-load.d/bridge.conf which contains the word "bridge" (no quotes). When the system boots up, it will iterate through all the module configuration file and load the respective modules. The bridge module is what is needed to start the Docker Daemon.

Categories // Automation, Docker, Not Supported, PowerCLI, VCSA, vSphere 6.5 Tags // Docker, Photon, vcenter server appliance, VCSA, vcva, vSphere 6.5

PowerCLI Core is now available on Docker Hub!

10.19.2016 by William Lam // 8 Comments

The much anticipated PowerCLI Core was just released this week as a VMware Fling which allows you to run PowerCLI on Linux, Mac OS X or even as a Docker Container. This is HUGE if you ask me, especially for customers who would like the benefits of PowerCLI and not be forced to use a Windows system which it traditionally had required.

I personally have been using PowerCLI Core for quite some time now on my Mac OS X and the experience is exactly the same as you would find it on its Windows counterpart. The Docker Container is also a another great way to consume PowerCLI Core and I also use that quite frequently as well. One thing I felt that would make the Docker Container even easier to consume for those looking to do something really quick in PowerCLI or what I call "Just In time PowerCLI access" is to be able to quickly pull it down from Docker Hub rather than having to download bunch some files and then manually build it yourself (not that it is complicated) but sometimes speed is the game.

I had posted a tweet earlier this morning and literally a few hours later, my good friend Alan Renouf delivered the goods! In addition, you will also find that the new version of PowerCLI Core Docker Container is now using Photon OS image rather than Ubuntu as it previously did.

Asked for @PowerCLI Core to be hosted on @Docker Hub & the MAN (@alanrenouf)) delivers!

docker pull vmware/powerclicore pic.twitter.com/4VpoDZJNc9

— William Lam (@lamw.bsky.social | @*protected email*) (@lamw) October 19, 2016

In addition to the three methods of consuming PowerCLI Core, you also now find it hosted on Docker Hub: https://hub.docker.com/r/vmware/powerclicore/

UPDATE (01/03/17) - It looks like PowerNSX is now also included with PowerCLI Core. To use PowerNSX, simply import it by running the following command: Import-Module PowerNSX and you will now have access to the PowerNSX cmdlets! Nice job to the PowerNSX guys for making this possible for our customers!

To access PowerCLI Core from Docker Hub, you simply just need a system installed with the Docker Client (Windows, Linux or Mac OS X) running or you can even use VMware's Photon OS which comes with Docker by default and following the instructions below:

Step 1 - Pull the PowerCLI Core image from Docker Hub by running the following command:

docker pull vmware/powerclicore

screen-shot-2016-10-19-at-10-52-00-pm
Step 2 - Run the PowerCLI Core Docker Container by running the following command:

docker run --rm -it --entrypoint='/usr/bin/powershell' vmware/powerclicore

screen-shot-2016-10-19-at-10-52-33-pm
It is literally that easy to access PowerCLI from ANY platform at ANY time! 😀

Step 3 - If you are using a self-signed certificate, you will need to run the following command below before you can call the Connect-VIServer cmdlet:

Set-PowerCLIConfiguration -InvalidCertificateAction Ignore -Confirm:$false

Categories // Automation, Docker, PowerCLI, Security Tags // Docker, PowerCLI

VMware PowerCLI for Mac OS X, Linux & More? Yes, please!

09.06.2016 by William Lam // 10 Comments

powercli_for_mac_osx_linux_1There were a several announcements at last weeks VMworld US Conference, but one of the most exciting piece of news in my opinion was from Alan Renouf, Product Manager for all things API/SDK/CLI at VMware. During Alan's What's New PowerCLI session, he announced that PowerCLI is finally coming to both Mac OS X as well as Linux! As you can imagine, the news was very well received from customers and partners. In fact, after I had tweeted the update here & here, I literally had folks pinging/IM'ing/DM'ing me non-stop about when they could get access 🙂

UPDATE (10/18/16) - PowerCLI Multi-Platform (MP) for Linux and Mac OS X has now been released as a VMware Fling. Please find the download here and provide any feedback in the comments section.

This exciting update was only possible with the help of our friends over at Microsoft who had recently open sourced both .NET Core & PowerShell. Once that news broke, Alan and the PowerCLI Engineering team have been working hard on porting over the existing PowerCLI code which uses the Windows .NET library over to the new .NET Core which is now open sourced. I have been very impressed at how fast the PowerCLI team have already made available many of the default cmdlets as well as the Get View cmdlet which exposes the entire functionality of the vSphere API.

Now, before you get too excited, this new version of PowerCLI is currently not available yet. As Alan mentioned in his session, we plan to release an early Tech Preview of PowerCLI for both Mac OS X and Linux as a VMware Fling shortly after VMworld. It is also very important to note that Microsoft PowerShell for Mac OS X & Linux which PowerCLI uses is just at an Alpha release milestone. There is still much work to do on both sides but I am really looking forward to enabling our customers with the choice of platform when it comes to consuming PowerCLI.

powercli_for_mac_osx_linux_2

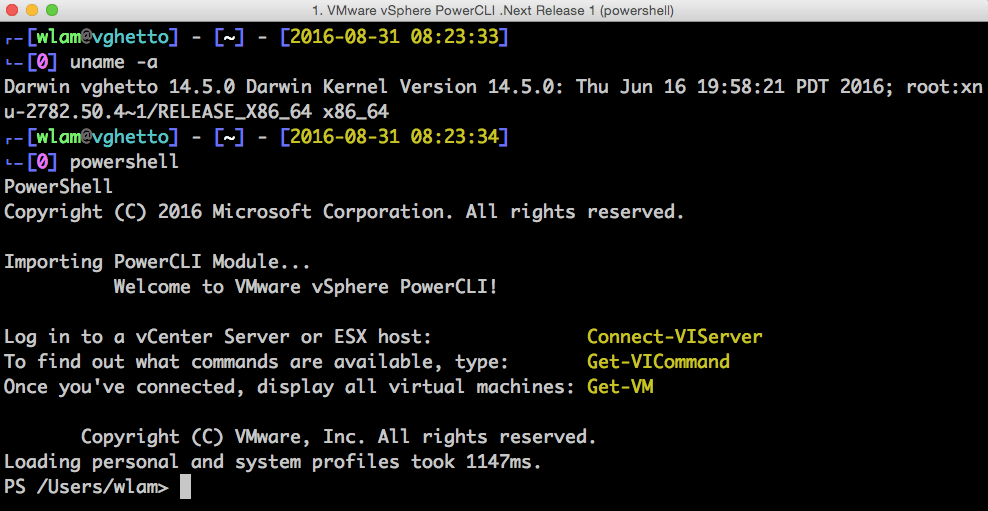

A few of us have been quite fortunate to have been involved in the early development of this new version of PowerCLI. In fact, we even built a simple Docker Container for PowerCLI which will allow you to easily access PowerCLI from any system that can run Docker. Here is a quick screenshot of spinning up a PowerCLI Docker Container which will also be part of the Fling release.

powercli_for_mac_osx_linux_3
Lastly, we want customers to be able to quickly and securely set up a persistent PowerCLI environment in which they can use to manage and configure their VMware-based products that support PowerCLI. With that, we have also built a PowerShell package for Photon OS which is VMware's minimal Linux container host distribution. Not only is it free to download and use, but it literally takes a few seconds to install (tdnf -y install powershell) and even less time to boot up and import the PowerCLI module. This was literally done the week before VMworld by the Photon team and huge kudos for their support! As you can see, not only do we want to provide choice for our customers but also simplifying how you might consume PowerCLI whether its natively on Windows, Mac OS X, Linux, Docker Container or running on top of VMware Photon OS. I hope you are excited as I am and stay tuned for more details on the Fling release!

If you have any feedback or what you are most excited regarding this news, please leave a comment and I will make sure it makes it way back to our Product Manager.

Categories // Apple, Automation, Docker, PowerCLI Tags // Docker, linux, Microsoft, osx, Photon, PowerCLI, PowerCLICore, powershell, vSphere
