ESXi Thunderbolt Driver to Fibre Channel Storage from ATTO

09.12.2016 by William Lam // 6 Comments

One of the things I always enjoy doing at VMworld, when I am not running around and I have a few minutes to myself, is to check out the VMware Solutions Exchange. This is where you can learn and interact with hundreds of our VMware Certified Partners showcasing their new solutions and innovations that they have built on top of VMware's products.

UPDATE (08/22/17) - ATTO's ESXi Thunderbolt Driver is now officially on the VMware HCL, please see this blog post here for more details.

While walking through the show floor, I had stopped by the ATTO Technology booth who has been a long time partner of VMware in the storage and networking connectivity space. What caught my eye was that they had just released a Beta of an ESXi Thunderbolt Driver in the form of an ESXi VIB that would allow customers to connect their Apple Mac Pro 6,1 using the Thunderbolt 2 interface to an external Fibre Channel storage array. I believe ATTO might be the first vendor ever to produce a Thunderbolt Driver for ESXi. This is really exciting news if you ask me, especially as more and more of our customers are looking to virtualize Mac OS X guests in their Datacenters using vSphere.

Historically, the only option to connect a Mac Pro 6,1 to an external Fibre Channel array was to use something like a Sonnet Chassis. Now, you can potentially connect up to 6 of the built-in Thunderbolt 2 interfaces on the Mac Pro's to your external storage array using this new solution from ATTO. Before I go into some of the details, ATTO did want me to mention that this solution is currently not officially supported by VMware nor is it on VMware's HCL. ATTO will be providing full support on their software as well as VMware's software stack during the duration of the beta program. In terms of official certification on VMware's HCL, I suspect that it will most likely depend on customer demand which would influence whether ATTO applies for an official certification, which again, would be the first of its kind for Thunderbolt.

The way in which this solution works is that you install the ATTO Thunderbolt Driver on your ESXi host and this will allow it to communicate with an ATTO ThunderLink device which provides the Thunderbolt 2 to Fibre Channel connectivity. You have the option of using either the FC2082 which provides 20Gb/s Thunderbolt 2 (2-port) to 8Gb/s FC (2-Port) Device or the FC2182 which provides 20Gb/s Thunderbolt 2 (2-port) to 16Gb/s FC (2-Port) Device. Below is a diagram from the ATTO digital solution brief on Thunderbolt Driver for ESXi which outlines the configuration.

If you are interested in taking part in ATTO's ESXi Thunderbolt Driver Beta program or would like to learn more about the solution, you can reach out directly to Carllene Mowry (*protected email*) who is running the program. For more information be sure to check out the ATTO digital brief on Thunderbolt Driver for ESXi.

Lastly, I was also fortunate to have a quick chat with Carllene and team to get a few additional exclusive tidbits on some of the things the ATTO team is working on next. The first of which is support for the Thunderbolt 3 (aka USB-C) interface to Fibre Channel which will be quite nice for newer platforms that include that interface, including home lab setups such as the Intel NUC. Speaking of Intel NUC, this is just one of the many other platforms that include either Thunderbolt 2 or 3 interfaces. Although the solution today is specifically supporting the Mac Pro, I know ATTO folks are interested to hear from customers on other systems with Thunderbolt interface and providing similiar capabilities.

The other really exciting development that is currently being investigated is support for Thunderbolt 2 or 3 to 10GbE connectivity on ESXi. As you can imagine, this is really going to open up some really cool new use cases, especially around things like VSAN which can easily benefit from this. It is still in early development but from my understanding, ATTO is already seeing a lot of interest in this area as well as how this might work with VSAN. I am hoping I will be able to share more details as this further develops. If any of these updates sounds interesting, do leave a comment to let the ATTO folks know and I will make sure they monitor the thread.

Heads Up: OVF/OVA always deployed as Thick on VSAN when using vSphere Web Client

06.03.2016 by William Lam // 25 Comments

Just wanted to give folks a heads up on an issue that a colleague of mines recently identified when provisioning Virtual Appliances (OVF/OVA) onto a VSAN datastore when using the vSphere Web Client. He found that regardless of the VSAN Storage Policy that was selected, whether it is the default VSAN Storage Policy or a custom one, the Virtual Appliance will always be Thick provisioned.

This behavior only occurs when using the vSphere Web Client and is not observed when using either the vSphere C# Client or the ovftool CLI. My understanding of the issue is that there are two ways in which a VM can get provisioned as Thin. The "old" method which was to explicitly specify the disk allocation type (Thin vs Thick) and the "new" method which uses VM Storage Policies. To ensure that we maintain backwards compatibility for older clients, if a client specifies Thick provisioned, it would actually override the VM Storage Policy even if the Object Space Reservation capability was set to 0 (Thin provisioned). Since you can no longer specify the disk allocation type in the vSphere Web Client, the default behavior is to not Thin provision and hence the current Thick provisioning result even though the default VSAN Storage Policy has OSR set to 0.

Note: When referring to Thick provisioned in VSAN (proportionalCapacity = 100), It is defined as provisioned Thin with a reservation so there is a guarantee that space is available for the object. It is not accurate to compare this to Zeroed Thick or Eager Zeroed Thick in the VMFS/NFS world as VSAN is an Object Store.

Engineering has already been engaged and is currently investigating the issue. We have also asked for a VMware KB to be published, so hopefully once that goes up, folks can subscribe to that for more details and updates.

In the meantime, since it is actually pretty difficult to see if you have been affected by issue, I have created a simple PowerCLI script called Get-VSANPolicy.ps1 which will allow you to quickly scan through your VM(s) to identify whether you have any VMs that have been Thick provision residing on a VSAN Datastore. You can either get all VMs by piping Get-VM * or a specific set of VMs into the script.

The following example retrieves all VMs that start with "Photon-Deployed-From-*" and extracts their current VSAN VM Storage Policy for both VM Home and individual VMDKs. Here, we can see that both VMs are using the default VSAN VM Storage Policy.

Get-VM "Photon-Deployed-From-*" | Get-VSANPolicy -datastore "vsanDatastore"

Lets now only search for VMs that have been Thick provisioned by using the -thick option and setting that to true. Here we can see that the OVF we provisioned through the vSphere Web Client is the only VM listed.

Get-VM "Photon-Deployed-From-*" | Get-VSANPolicy -datastore "vsanDatastore" -thick $true

If we want to get more details on the underlying VM Storage Policy that was applied, we can also specify the -details option to true. Here we can clearly see that the 2nd VM has proportionalCapacity=100 which means Thick provision.

Get-VM "Photon-Deployed-From-*" | Get-VSANPolicy -datastore "vsanDatastore" -thick $true -details $true

Luckily, the fix is quite easy thanks to Paudie O'Riordan who found out that it was as simple as just re-applying the VSAN VM Storage Policy! (Policy Based Management FTW!) This means there is no need to perform unnecessary Storage vMotions to be able to convert the VM from Thick to Thin, it is literally a couple of clicks in the UI.

UPDATE (07/15/16) - Thanks to reader Jose, it looks like using the vSphere Web Client to re-apply the VSAN VM Storage Policy will correctly apply the policy to the VM/VMDKs, but does not reclaim the underlying storage. It is recommended that you use the PowerCLI script below to re-apply the policy which will then properly reclaim the underlying storage and will properly reflect the storage utilization.

As with anything, I still prefer Automation and with that, I have created a secondary script to help with the remediation. This is also a PowerCLI script called Set-VSANPolicy.ps1 which accepts a list of VMs and the name of the VSAN VM Storage Policy that you wish to re-apply.

Here is an example of running the script and remediating two VMs that contains multiple VMDKs:

Set-VSANPolicy -listofvms $listofvms -policy $vsanpolicy

If you now re-run the first script, you should see that you no longer have VMs that are provisioned Thick anymore (this may take some time depending on the size of your VMs).

VSAN Management 6.2 API Quick Reference

05.31.2016 by William Lam // 2 Comments

With the release of VSAN 6.2 (vSphere 6.0 Update 2), a new VSAN Management API has been introduced which covers all aspects of VSAN functionality including: complete lifecycle (install, upgrade, patch), monitoring (including VSAN Observer capabilities), configuration and troubleshooting. Although there is a well documented VSAN Management API Reference Guide which you can navigate around, I personally find it useful to be able to have a quick reference to all the APIs in on place which I can easily search and reference. This is especially true when I am learning about a new API.

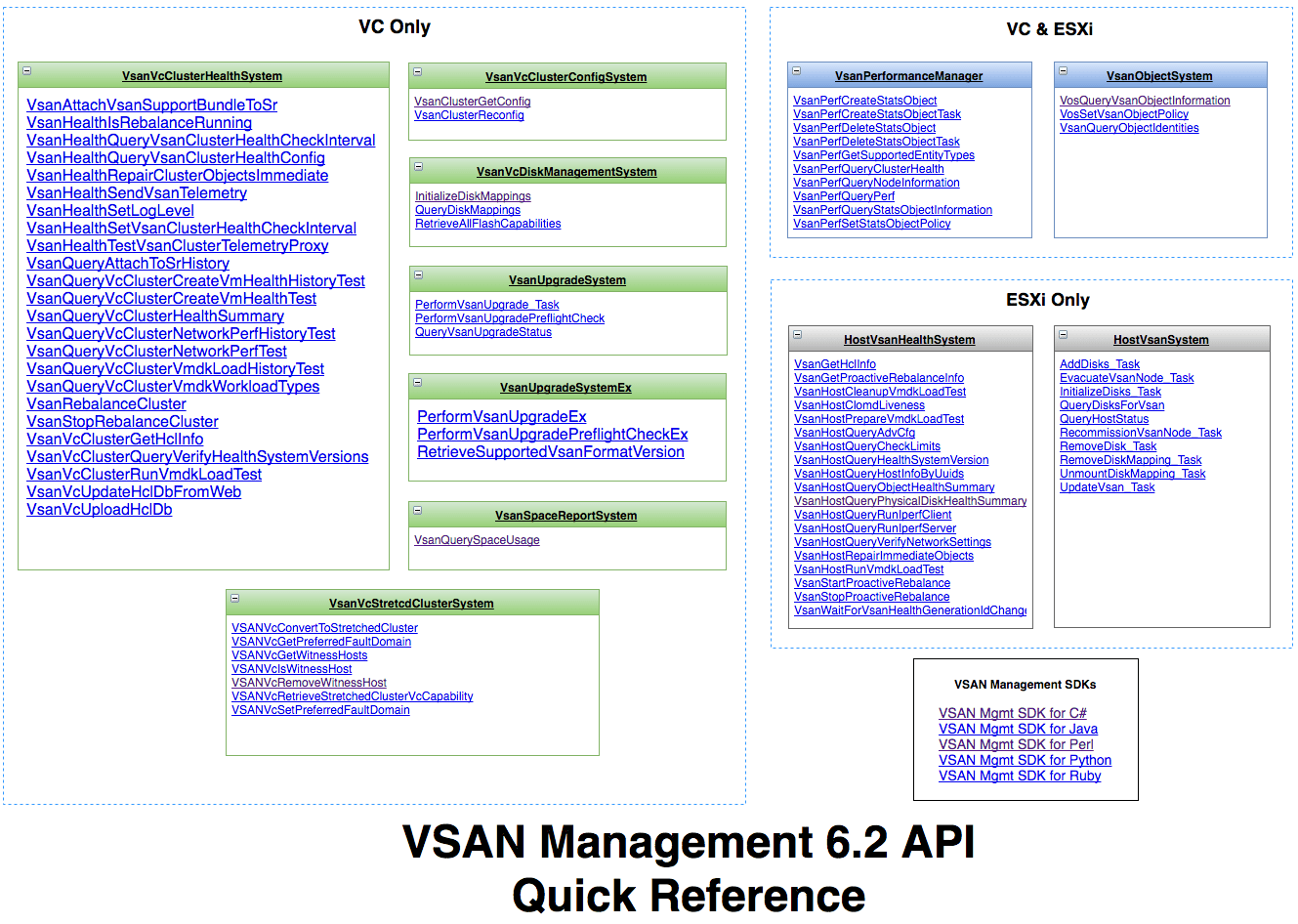

With that, I have created a "Quick Reference" of the new VSAN 6.2 Management API. You can find a screenshot below as well as the direct link to the quick reference. I used Draw.io to create the diagram but it is not just a static image of all the new Managed Objects and their respective methods, but each API method also links back to the VSAN Management API Reference Guide and best of all, because it is in HTML, you can easily search in the quick reference itself.

I initially had created this for myself, but I figure that others could also benefit. I am curious if others find this useful and whether we should have something like this as part of the official VSAN Management API Reference Guide?

VSAN Management 6.2 API Quick Reference: https://s3.amazonaws.com/virtuallyghetto-download/vsanapi.html
