Update on Intel NUC 7th Gen (Kaby Lake) & ESXi 6.x

by // 28 Comments

Intel just started shipping their i3 7th Gen (Kaby Lake) Intel NUCs and no surprise, Florian of virten.net has already gotten his hands on a unit for testing. The Intel NUCs is a very popular platform for running vSphere/vSAN-based home labs, especially for their price point and footprint. Last week, Florian discovered from his testing that the built-in network adapter on the 7th Gen NUC was not being detected by any of the ESXi installers and had published his findings here.

Since the Intel NUC is not an officially supported platform for ESXi, it does not surprise me that these sort of things happen, even if the NUC had a pretty good track record going back to the 5th Gen releases. Nonetheless, I reached out to Florian to see if he can provide me with a vm-support bundle and see if there was anything I could do to help.

A couple of Engineers took a look and quickly identified the issue with the Kabylake NIC (8086:15d8) but before getting to the solution, I did want to clarify something. The Kabylake NIC is actually NOT an officially supported NIC for ESXi and although it currently shows up in the VMware HCL, it is a mistake. I have been told the VMware HCL will be updated shortly to reflect this, apologies for any confusion that this may have caused.

Ok, so the great news is that we do have a solution for getting ESXi to recognize the built-in NIC on the 7th Gen Intel NUCs. The semi-bad news is that we currently do not have a solution in the short term for any released version of ESXi, as the fix will require an updated version of the e1000e Native Driver which will only be available in a future update of ESXi. I can not provide any timelines, but keep an eye on this blog and I will publish more details once they are available.

In the meantime, if you already own a 7th Gen NUC, there is a workaround which Florian has already blogged about here which uses the USB Ethernet Adapter VIB for the initial ESXi installation. If you are planning to purchase the 7th Gen NUC and would like to wait for folks to confirm the fix, then I would recommend holding off or potentially looking at the 6th Gen if you can not wait. Thanks to Florian and others who shared their experiences with the 7th Gen NUC and also to the VMware Engineers who found a quick resolution to the problem.

UPDATE (07/27/17) - The updated e1000e Native Driver that was included in ESXi 6.0 Update 3 is now included in ESXi 6.5 Update 1 which just GA'ed. You should be able to install ESXi without require any additional modifications to the latest Intel NUCs.

UPDATE (02/24/17) - An updated e1000e driver which contains a fix for 7th Gen NUC is now available as part of ESXi 6.0 Update 3, below are several options in how you can consume the driver.

[Read more...]

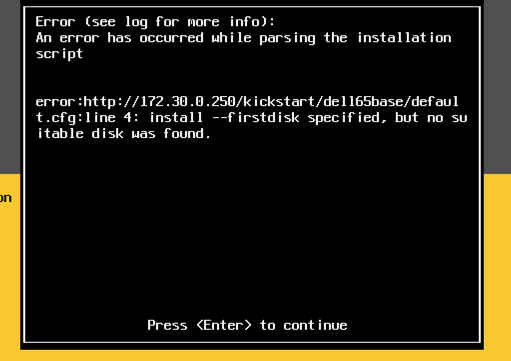

No suitable disk was found when upgrading to ESXi 6.5 on USB?

by // 10 Comments

I got a question from my buddy Paudie O'Riordan this morning where he was noticing a strange issue while trying to upgrade his ESXi hosts from 6.0 to 6.5 (all on the VMware HCL). Like many of our customers, he runs ESXi on USB device and when he attempted to upgrade using ESXi Scripted Install (Go Automation!), he was surprised to find that his USB device was not being detected.


Interestingly, I had literally just finished answering a similar question on our internal Socialcast forum and I had wondered if Paudie was also seeing the same problem. The issue looks to be related to the new USB Native Driver (vmkusb) that was introduced in ESXi 6.5 where is it is unable to claim the specific USB device.

Although you can disable the USB Native Driver and fall back to the legacy driver as mentioned in this VMware KB 2147650, but because this is happening during the installation/upgrade process, it can get a bit tricky.

[Read more...]

Copying files from a USB (FAT32 or NTFS) device to ESXi

by // 14 Comments

It is not uncommon, especially in troubleshooting scenarios where you might find yourself needing to transfer files to or from an ESXi host using a USB device as it may not be reachable on the network. Another common case for directly attaching a USB device to an ESXi host is to transfer a large amount of Virtual Machines that were exported from another system and rather than streaming the content from your desktop, you may want to connect it directly to ESXi host. In fact, I had this very use case when I was a customer after we had acquired a company and needed to transfer their assets to our infrastructure. The IT admins just copied everything onto a USB device and then shipped us the drive for processing.

Historically, it was understood that ESXi could only access a USB device (requires disabling the USB arbitrator service) if it contains a FAT16 partition which are then automatically mounted under the /vmfs/volumes/ path. The biggest issue with FAT16 is that the size of the partition has to be <=2GB which severely limits its use for larger files. Another alternative that came up in recent years years is that you could run VMFS on a USB device, but that obviously would require you to format the USB device with VMFS and it would only be readable between ESXi hosts. If you were looking for something more generic like FAT32 which supports a larger partition size, it was assumed this was not possible, at least I was under that impression.

It was only recently as part of a project I had been working on where I was re-visiting this topic that I had discovered that other partition types such as FAT32 and even NTFS from a USB device could actually be accessed by ESXi 6.x. The assumption that I and probably others had made was that just because the partitions were not visible or mounted by ESXi, it does not mean the underlying USB device would also not be accessible. To access a FAT32 partition from a USB device in ESXi, you can use the mcopy utility from the ESXi Shell and for accessing an NTFS partition from a USB device in ESXi, you can use ntfscat utility. It actually took me some trial/error to get the correct syntax, but you can see how to use the utilities below.
